Point Cloud Scan to BIM Services for a School Project

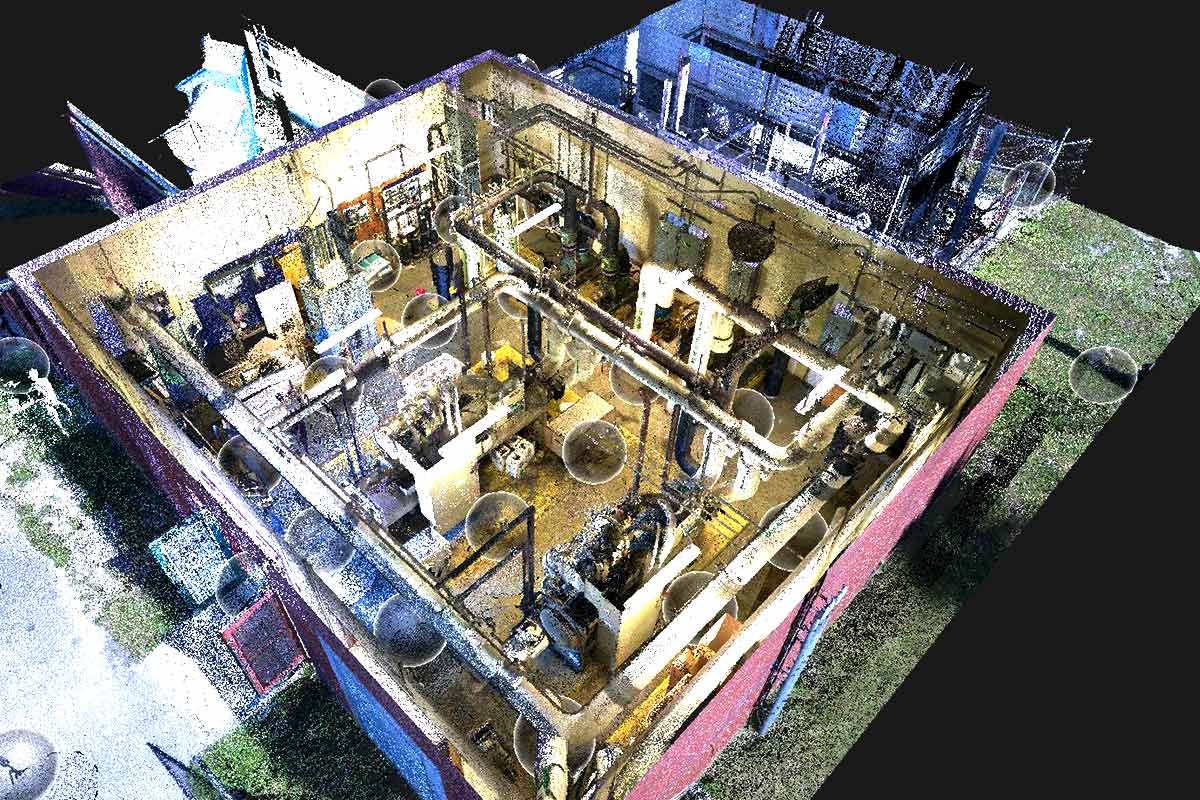

Point Cloud Scan Data of a Mechanical Room in a School Facility
Point Cloud Scan to BIM Project by United-BIM
Point Cloud Reference Point of a School project by United-BIM
Scan to BIM Project by United-BIM

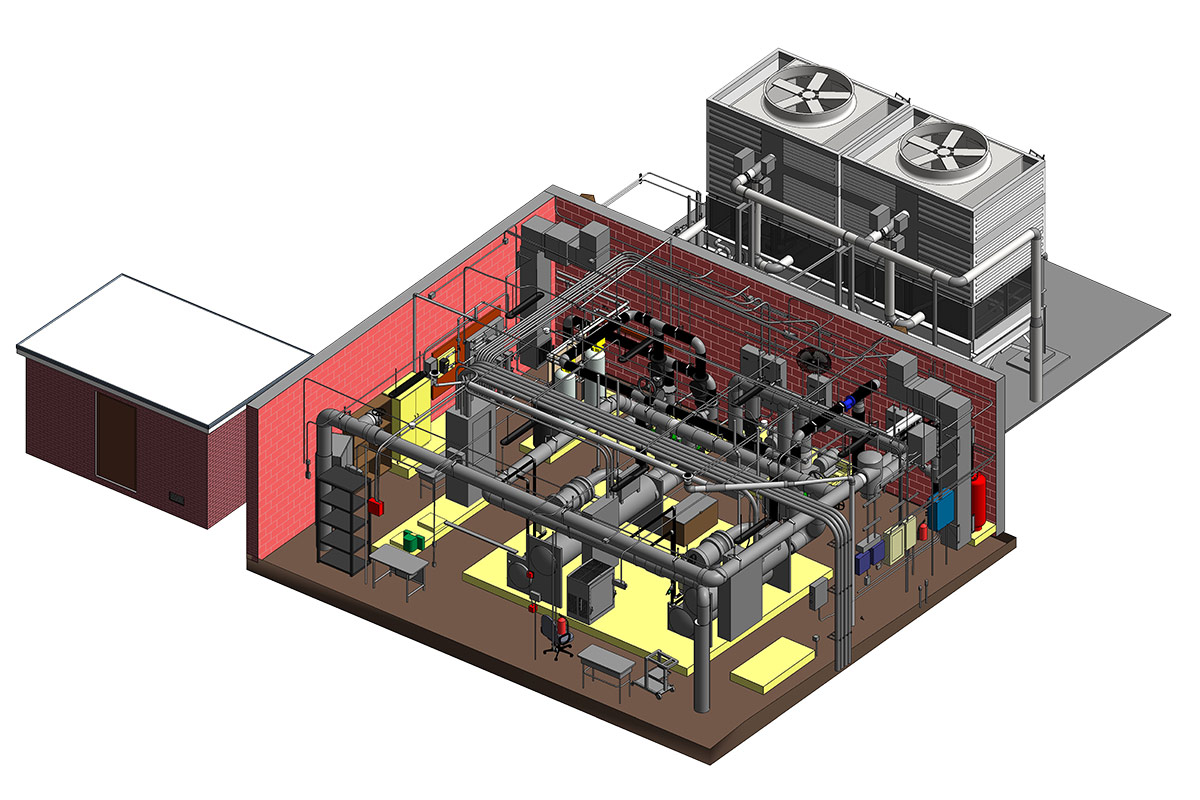

Point Cloud Scan to BIM Project by United-BIM

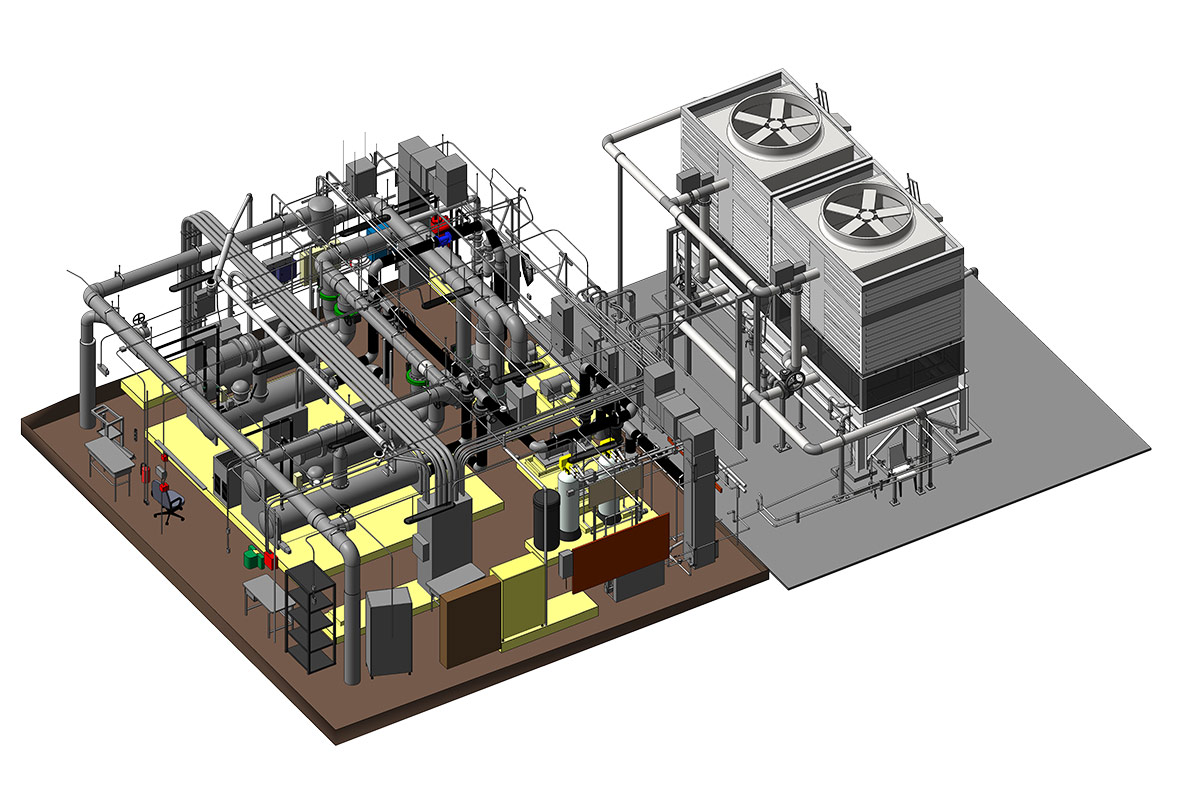

Scan to BIM Project by United-BIM

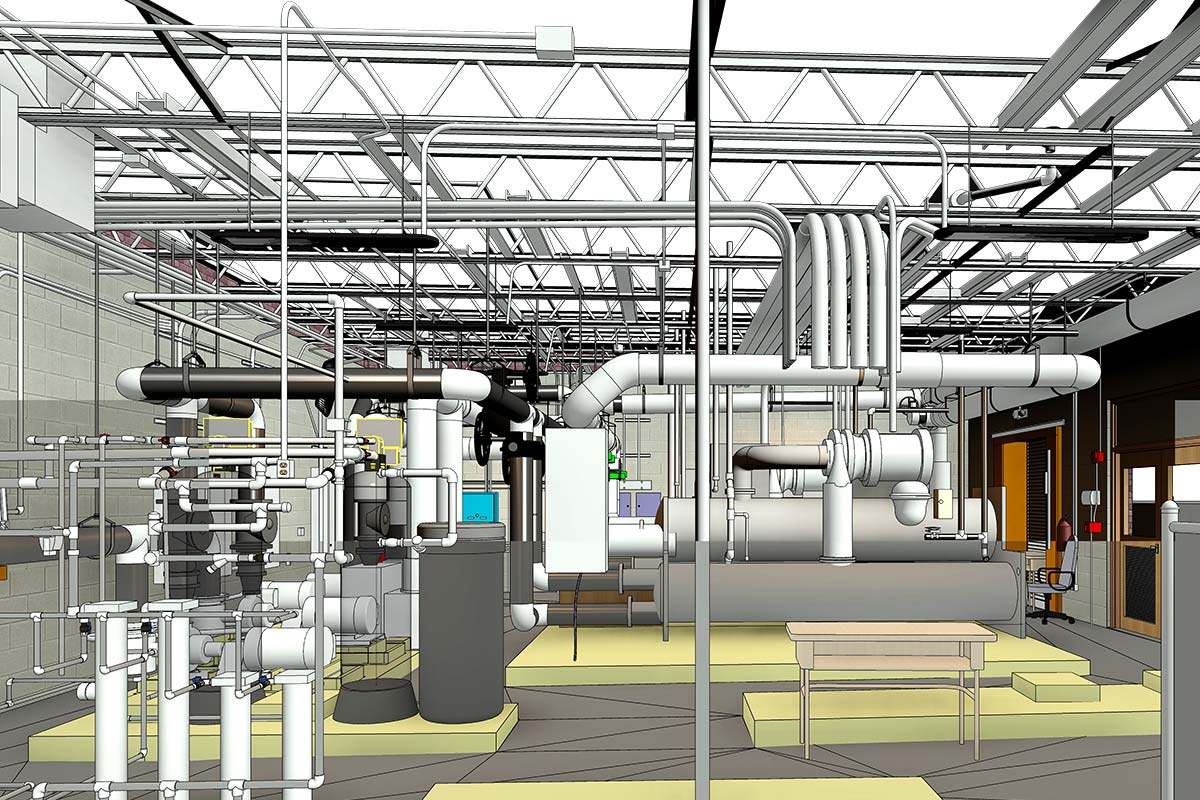

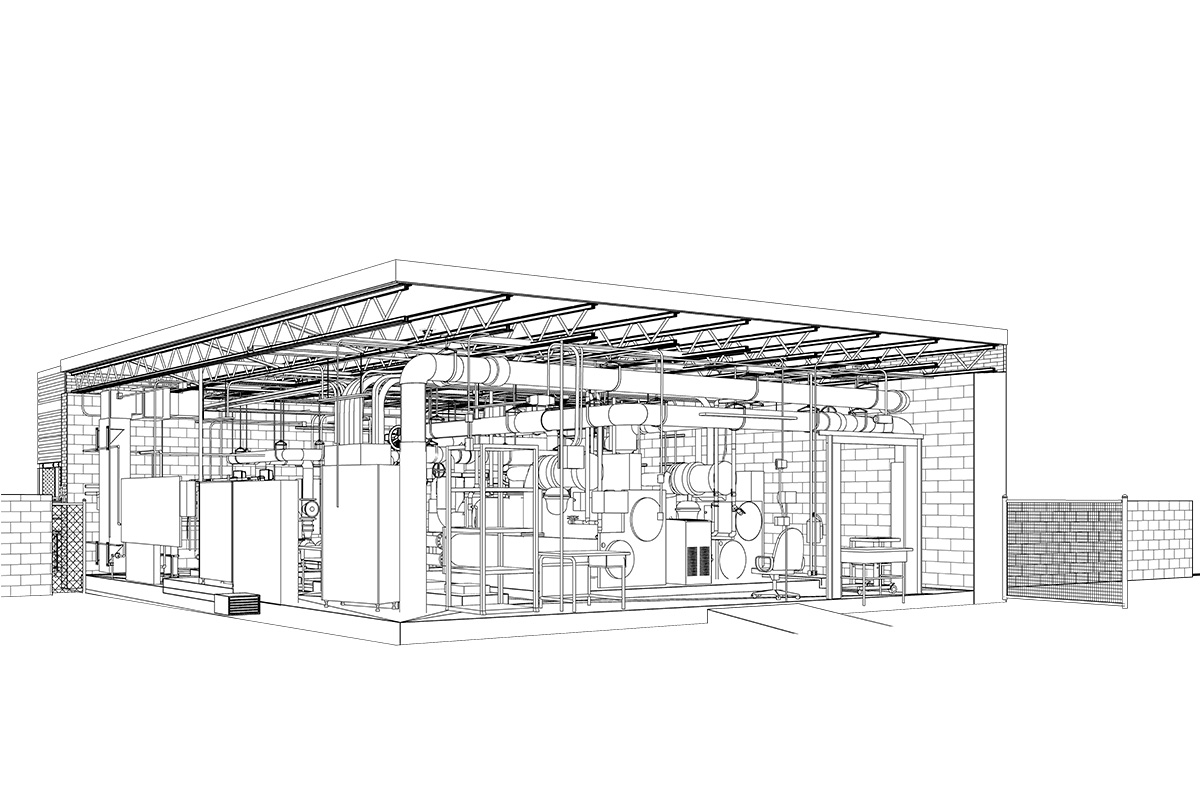

Section View of a Mechanical Room of a School Project by United-BIM

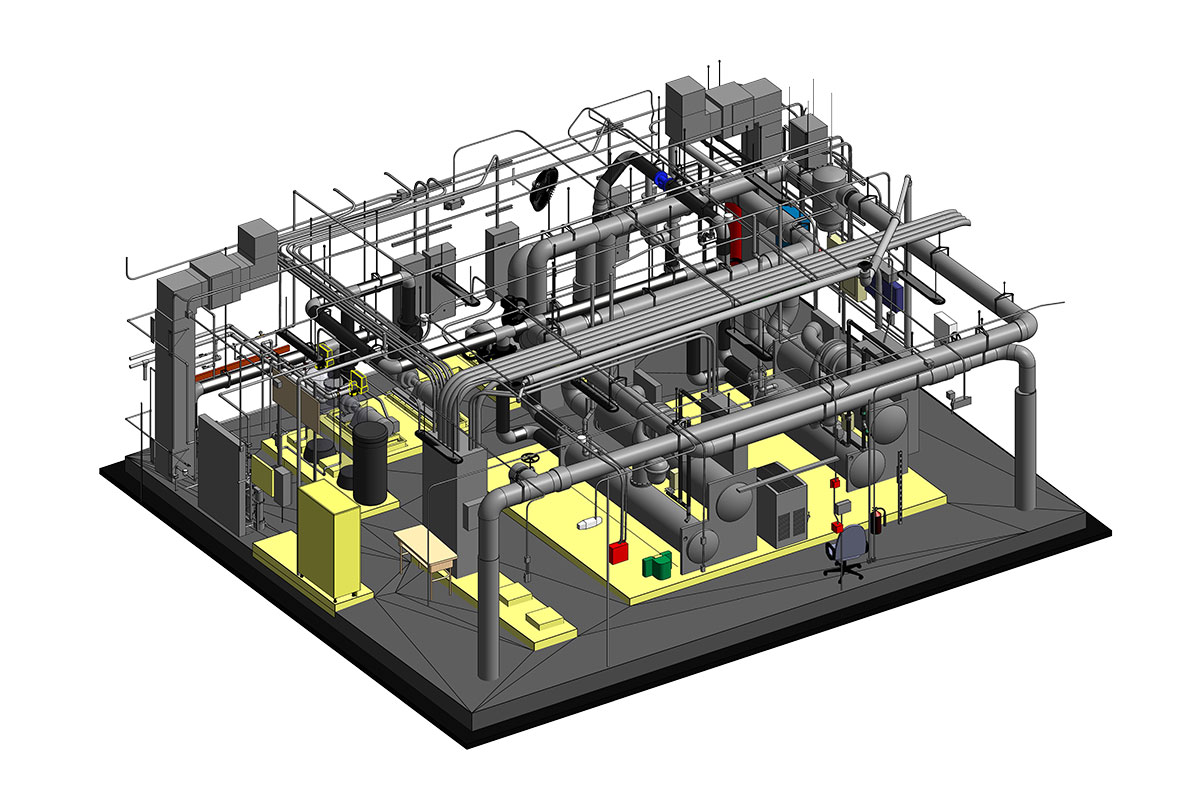

Section View of a Mechanical Room of a School Project by United-BIM

Point Cloud Scan to BIM Services for a School Project

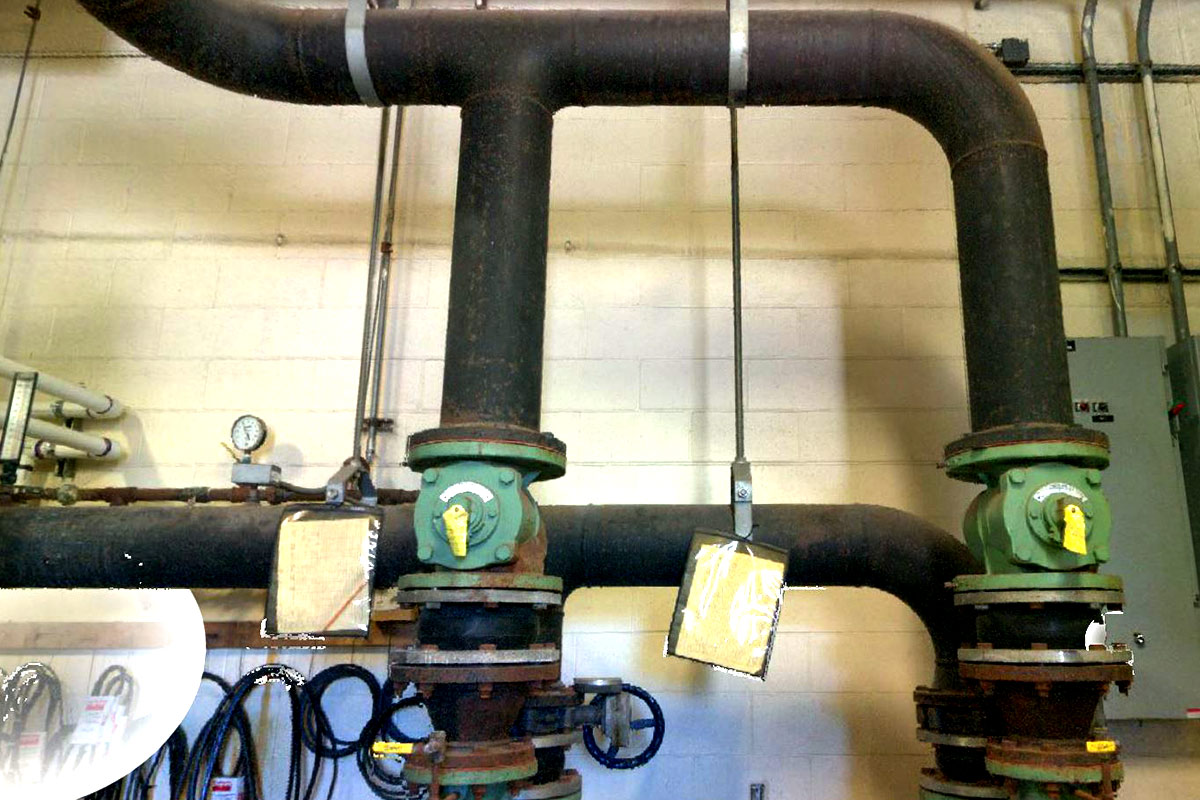

In this project, our client wanted us to capture the existing condition of a Mechanical Room in a School Facility, Florida. The purpose of the project was to Renovate the facility. Since it was a Mechanical Room, it comprised various HVAC Piping and Fitting components that were hard to measure the as-built conditions so a Scan to BIM process was used to digitally represent the facility.

Services
Scan to BIM Services

  • ClientA/E/C Firm
  • Point Cloud Scan Data14.2 GB with 40 different reference points
  • LOD400
  • SoftwareRevit, AutoCAD, ReCap Pro
Full Case Study
