Development of Revit BIM Model from Point Cloud Scan Data of a Hotel in Aruba

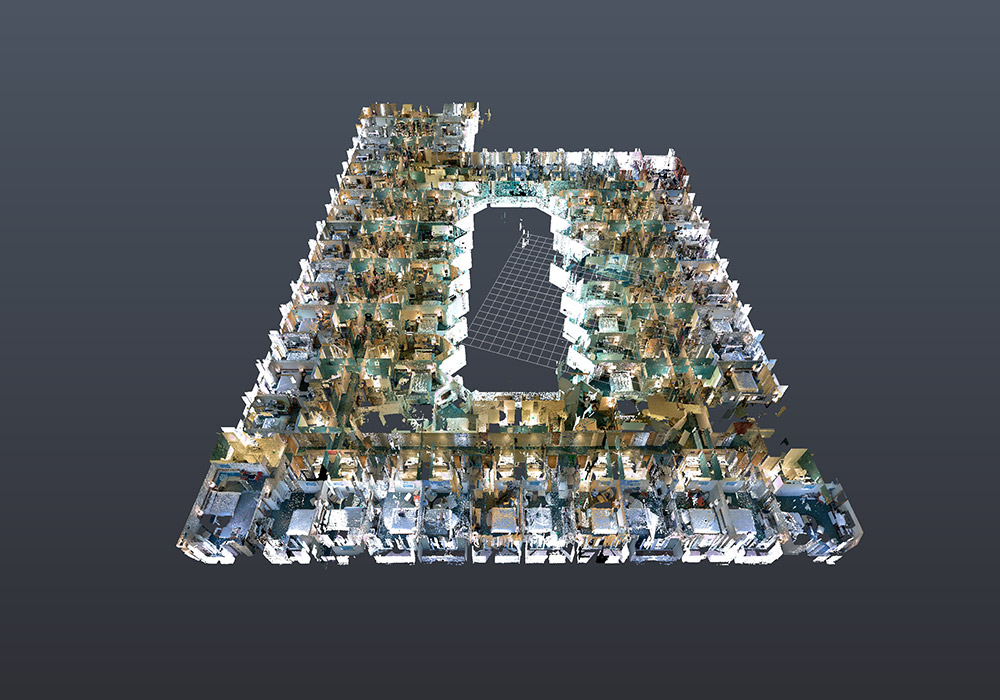

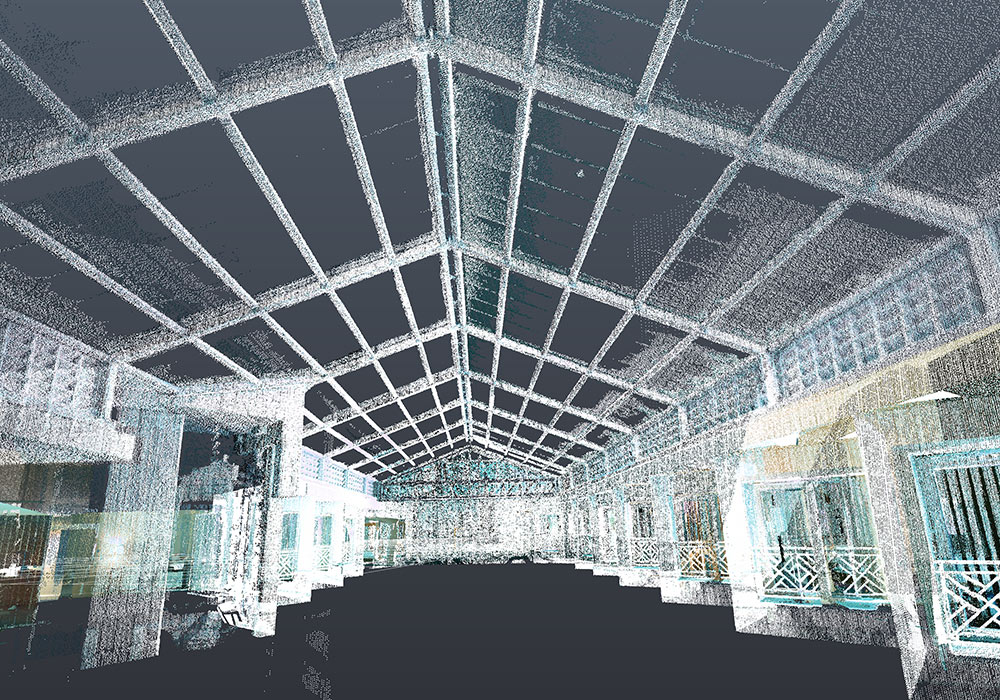

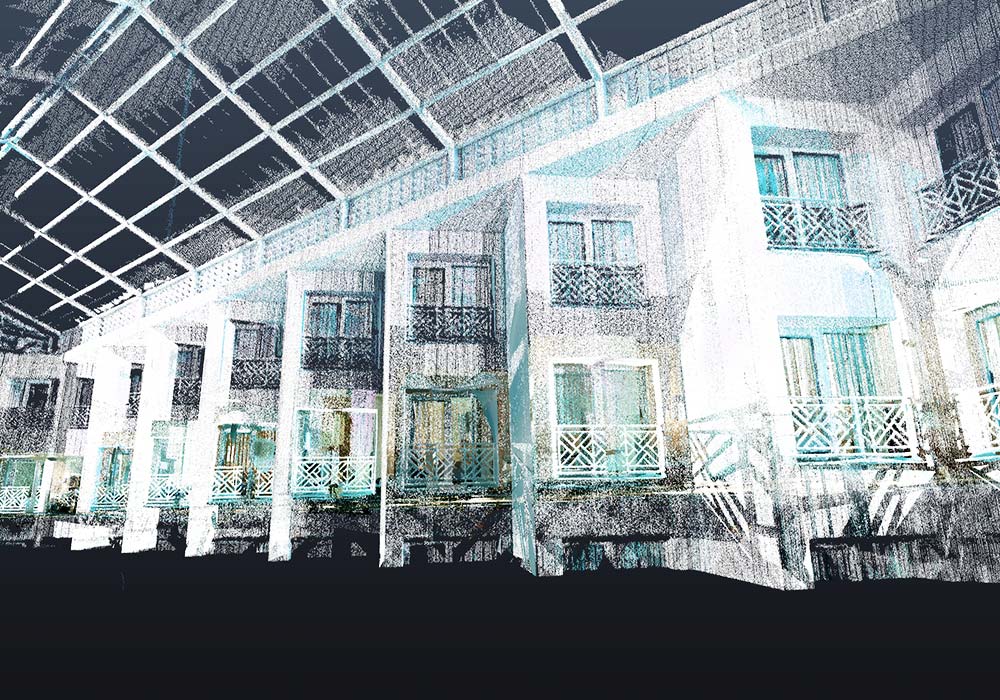

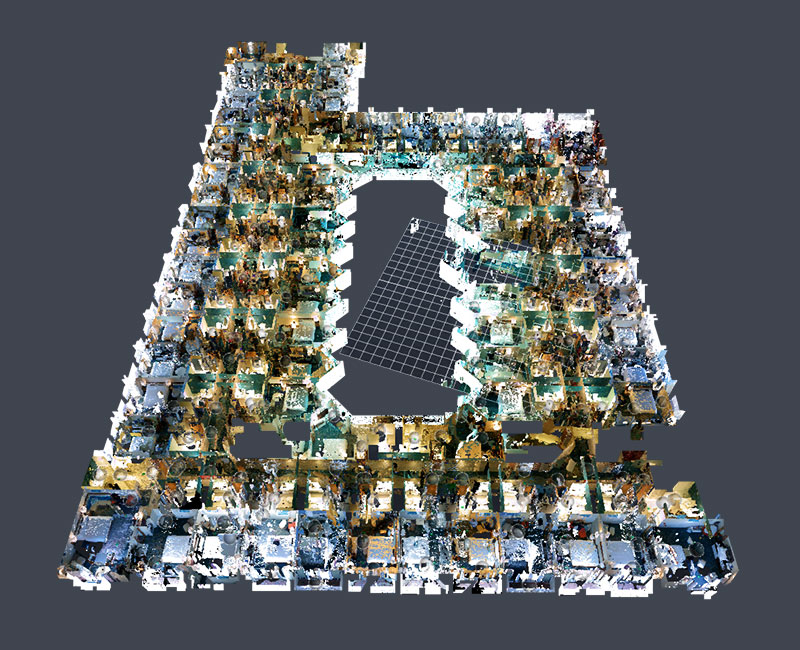

Point Cloud Scan of a Hotel Project

Development of Revit BIM Model from Point Cloud Scan Data of a Hotel in Aruba

  • Client
  • An Integrated Architecture, Engineering and Construction Firm
  • Services
  • Scan to BIM & Architectural BIM Services
  • Industry
  • AEC
  • Tools
  • Revit & ReCap Pro
  • About Project
  • The project was about a renovation of a Hotel, for which our client wanted an accurate conversion of Point Cloud Scan data into a Revit BIM Model.
  • The Client - An Integrated Architecture, Engineering and Construction Firm
  • Client's Requirements - Accurate conversion of Point Cloud Scan Data with multiple references points to a BIM model with LOD 350
  • Project Needs - We accurately converted Faro's point cloud scan data provided by the client in to a BIM model. The client wanted us to model 6 story Hotel and include all the architectural elements like room, doors, beds, windows, furniture, etc. at LOD 350 level.
  • Deliverable Requirements- LOD 350, Architectural Modeling, Point Cloud Scan to BIM from 225 reference points.
  • Project Deliverable- .DWG, .IFC, & .RVT file formats with Revit Version 2019
  • Project Brief
  • The hotel project was captured by using Faro's laser scanning device from 225 different reference points. We had to model the entire point cloud scan data and include all the Architectural elements and components at LOD 350.
  • The project size was 182, 490 sq. ft. of a hotel project undergoing renovation.
  • The client provided us with Point Cloud Scan Data for us to model all the Architectural Components from it.

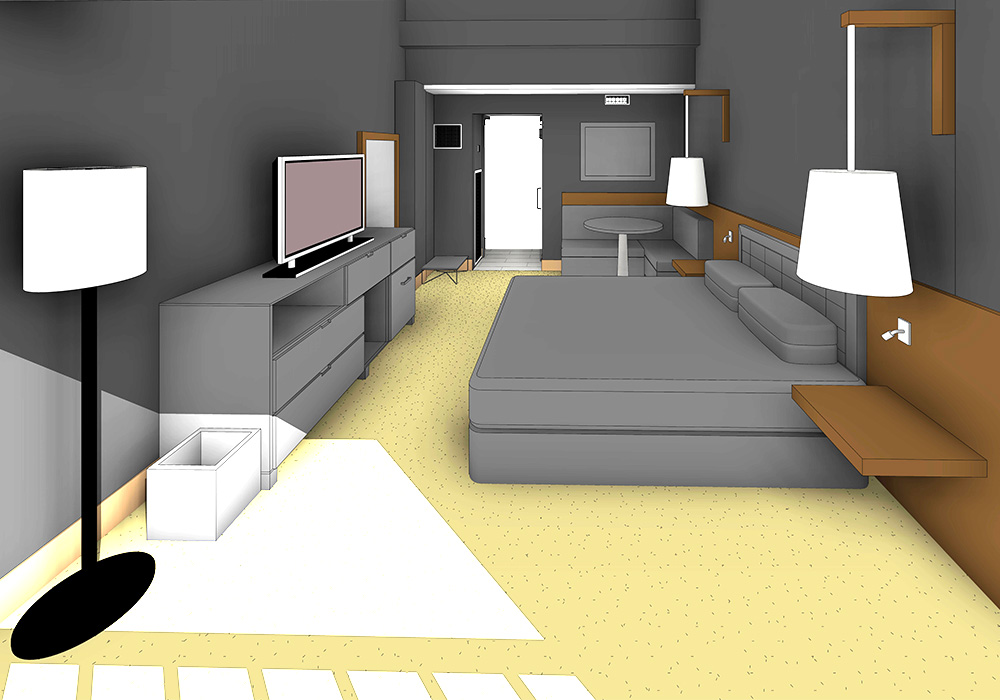

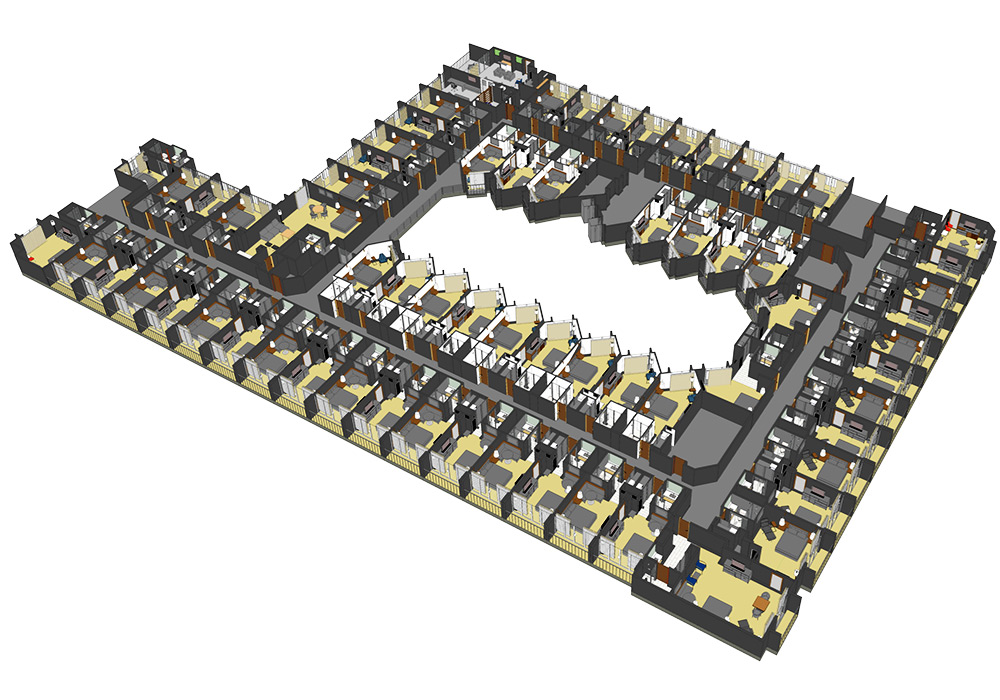

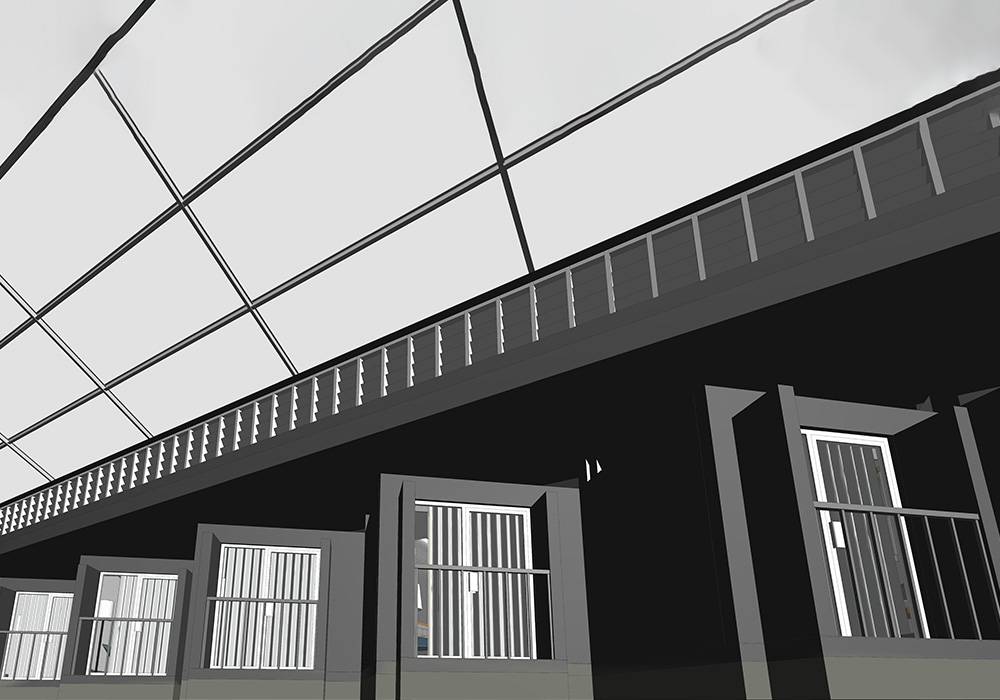

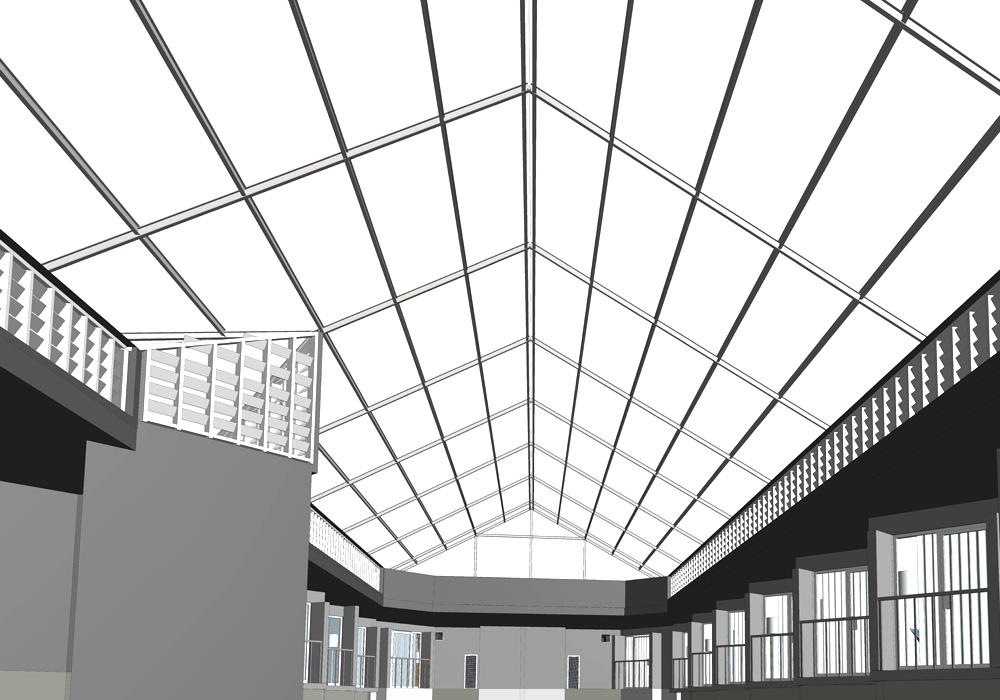

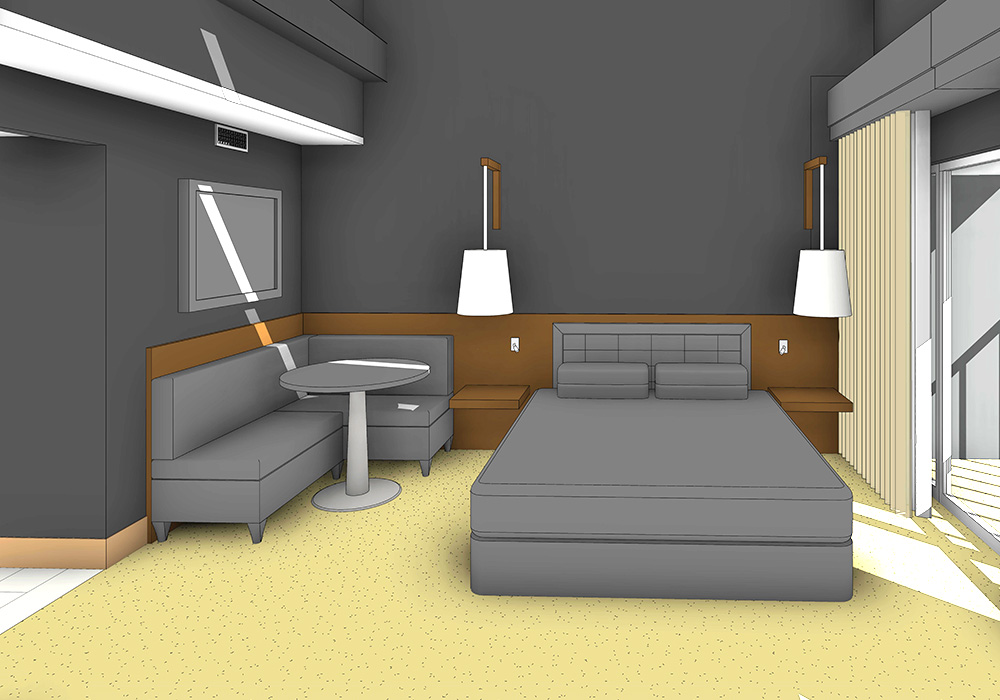

  • We converted the point cloud scanned data into a 3D model using ReCap Pro. After this, we developed it into an Architectural BIM Model using Revit.

Project Skills & Expertise

The technologies used for the execution of this project are Point Cloud Scanning and Revit BIM Modeling. The dedicated BIM team worked in sync to create an accurate model using Revit and ReCap software. Our 3-Level of quality checks assured accurate reproduction of  dimensions and specifications.
